Type：side-mounted float level switch
Illustrate：It’s used for all kinds of hatch,measuring level under airproof condition,it can be at the appointed level position,sending out the corresponding control signal correctly in order to alarm in time or control automatically.
Side-mounted Float Level Switch
1.purpose:
It’s used for all kinds of hatch,measuring level under airproof condition,it can be at the appointed level
position,sending out the corresponding control signal correctly in order to alarm in time or control
automatically.
2.characteristic:
With steady、correct and reliable performance,use widely,various kinds,complete specification
(can be used in all kinds of situations).

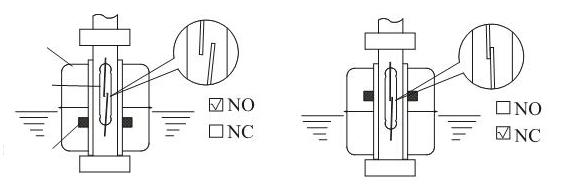

3.work principle:
Mainly make up of direction pipe,float,point switch,lead and airproof material.Float changed via flotage
caused by fluid fluctuate,up and down along the direction pipe,drive the different points in the direction
pipe change to output signal instantly.
4.technical data:
(1).medium parameter:0~80°C.
(2).switch capacity:AC220V 0.5A
(3).switch life:not less than 500,000 times
(4).evironment temperature:95%
5.usage and maintenance:
(1).switch is fragile part,please transit by many soft thread.
(2).should be used in the state of vertical.
(3).if used in wet environment,should add insulation to tie up dispose.
(4).if used in the open air,should add shield.
