Type：250, 251, 252 series Coated Thickness Meter
Illustrate：Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic ...

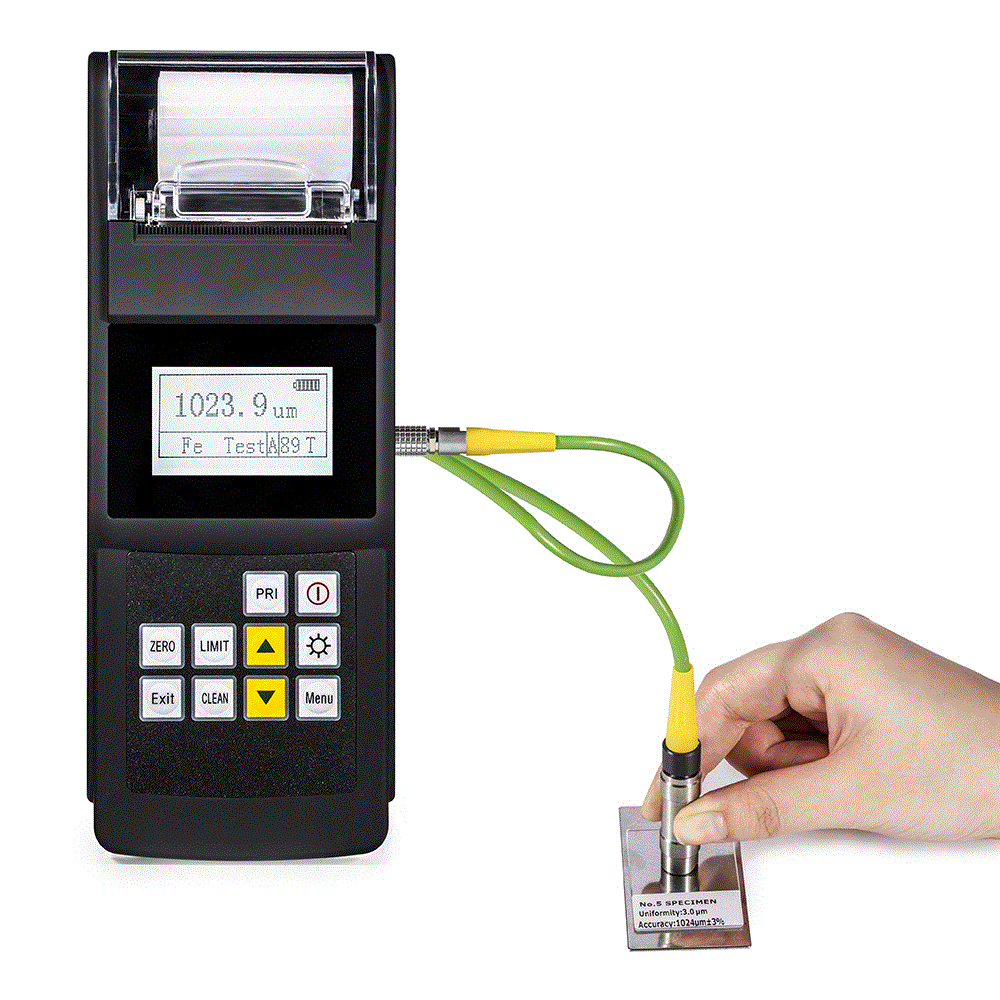

CX-CTG-250, 251, 252 Coated Thickness Meter
Main function：
Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).
●One-button operation;
●Integrated design, small size.
Technical parameter：
Main function：
Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).
●One-button operation;
●Integrated design, small size.
Technical parameter：
| CTG-250 | CTG-251 | CTG-522 | ||
| Measuring head type | F1 | N1 | F1/N1 | |
| Operational principle |
Magnetic induction |
Eddy current |
Magnetic induction or Eddy current |
|
| Measuring range | 0~1250μm | |||
| Lower limit resolution | 1μm | |||
| Indication error | One-point Calibration | ±（3%H+1） | ||
| Two-point Calibration | ±[（1~3%)H+1] | |||
| Measure condition | The mini. radius of curvature(mm) | bulge 1.5, concave 20 | ||
| Mini. area dia.(mm) | Φ10 | |||
| Basic critical thickness(mm) | 0.5 | |||
| Working environment | Temp. | 0~40℃ | ||
| Humidity | 20%~90% | |||
| Power supply | AAA alkaline batteries 1.5V（4 pcs） | |||
| Overall dimension | 150×55.5×23mm（main body） | |||
| Weight | 120g | |||
| standard configuration |
Main body, “AAA”alkaline batteries, standard test block、basal body |
|||
