Type：210,211 series Coated Thickness Meter
Illustrate：Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic ...

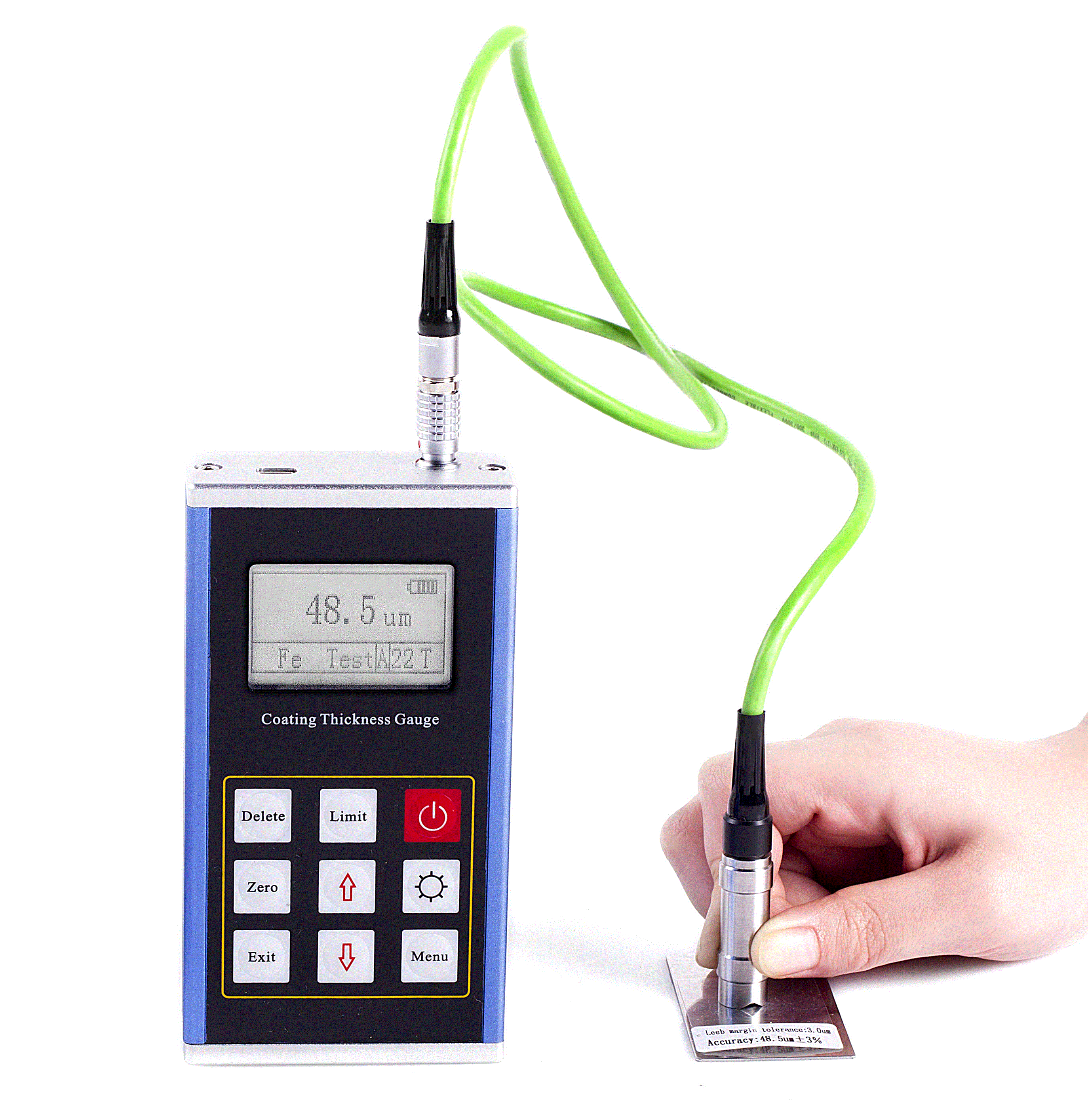

CX-CTG-210,211 Coated Thickness Meter
Main function:
Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).
Technical parameter:
Main function:
Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).
Technical parameter:
| CTG-210 | CTG-211 | |||
| Measuring head type | F1（can not pull \out and insert) | N1(can not pull\ out and insert) | ||
| Operational principle | Magnetic induction | Eddy current | ||
| Measuring range | 0~1250μm | |||
| Lower limit resolution | 0.1μm | |||
| Indication error | One-point Calibration | ±（3%H+1） | ||
| Two-point calibration | ±[（1~3%)H+1] | |||
| Measure condition | The mini. radius of curvature(mm) | 凸1.5 | ||
| Mini. area dia.(mm) | Φ7 | |||
| Basic critical thickness(mm) | 0.5 | |||
| Working environment | Temperature | 0~40℃ | ||
| Humidity | 20%~90% | |||
| Magnetic field | No high-intensity magnetic field | |||
| Power supply | “AAA”alkaline batteries（2 pcs） | |||
| Outline dimension | 115×70×30mm (main body) | |||
| Weight | 152g | 195g | ||
